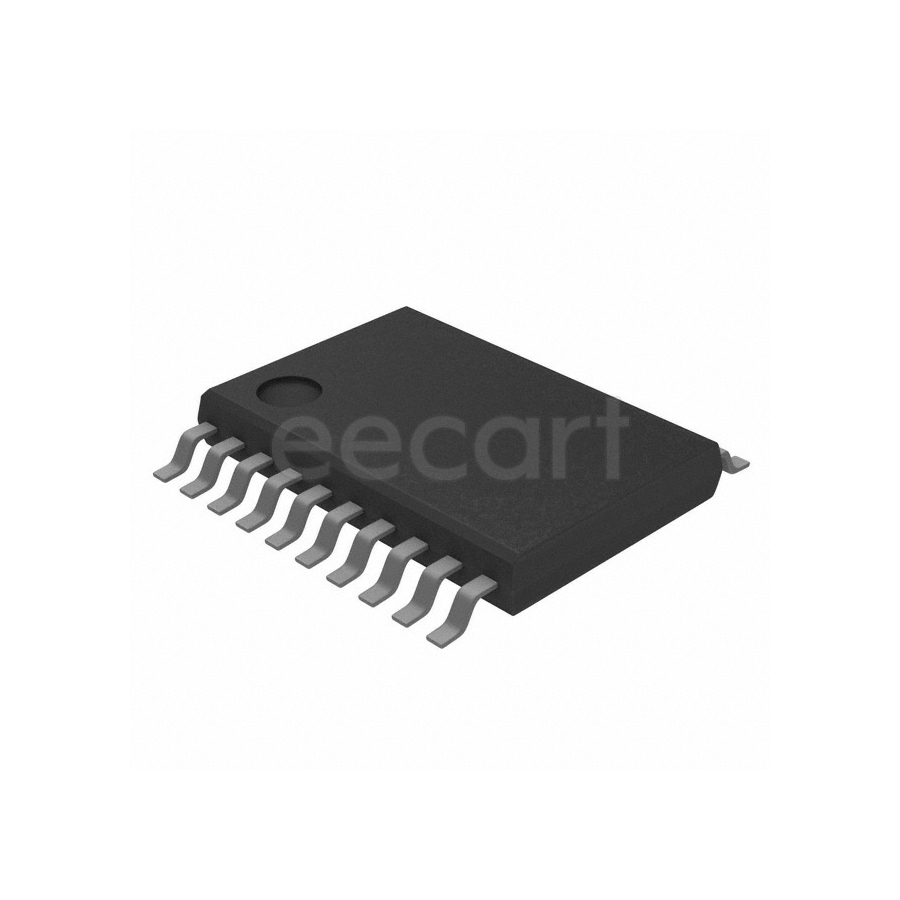

MAX3013EUP+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX3013EUP+
Datasheet:
Description:
Voltage Level Shifters TSSOP-20 SMD/SMT Voltage
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | Unknown |
| Type | Voltage Level |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3 V |
| Output Type | Tri-State, Non-Inverted |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.65 V |
| Number of Channels | 8 |
| Number of Bits | 8 |
| Quiescent Current | 100 nA |
| Propagation Delay | 6.5 ns |
| High Level Output Current | -20 µA |
| Low Level Output Current | 20 µA |
| Logic Function | Translator |
| Number of Inputs | 8 |
| Data Rate | 100 Mbps |
| Channels per Circuit | 8 |
| Voltage - VCCB | 1.65 V to 3.6 V |
| Voltage - VCCA | 1.2 V to 3.6 V |
Stock: 55
Distributors
pcbx
pcbxUnit Price$12.66733
Ext.Price$12.66733
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $12.66733 | $12.66733 |
| 10 | $10.10436 | $101.04360 |
| 25 | $9.69383 | $242.34575 |
| 50 | $9.29998 | $464.99900 |
| 100 | $8.92213 | $892.21300 |
| 300 | $8.55963 | $2567.88900 |
| 500 | $8.21196 | $4105.98000 |
